About This

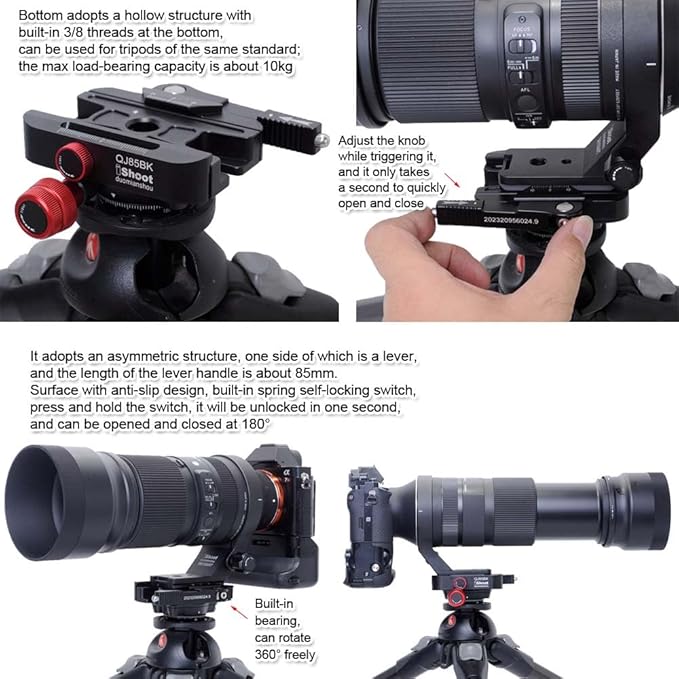

• 1. The clamp adopts an asymmetric structure, one side of which is a lever, and the length of the lever handle is about 85mm. Surface with anti-slip design, built-in spring self-locking switch, press and hold the switch, it will be unlocked in one second, and can be opened and closed at 180°；

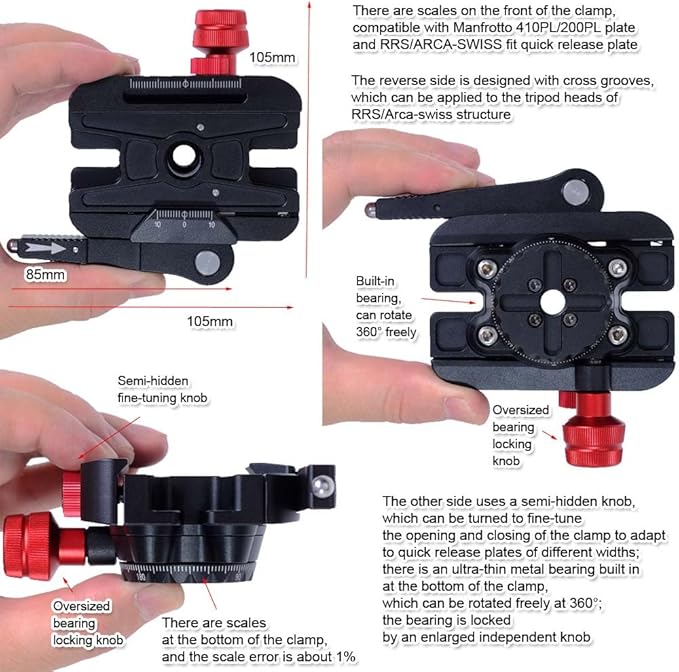

• 2. The other side uses a semi-hidden knob, which can be turned to fine-tune the opening and closing of the clamp to adapt to quick release plates of different widths;

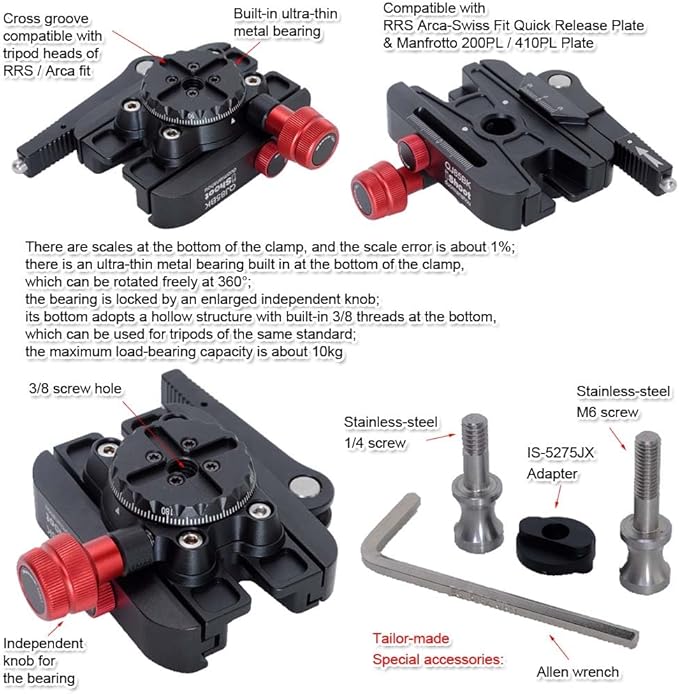

• 3. There are scales at the bottom of the clamp, and the scale error is about 1%; there is an ultra-thin metal bearing built in at the bottom of the clamp, which can be rotated freely at 360°; the bearing is locked by an enlarged independent knob; its bottom adopts a hollow structure with built-in 3/8 threads at the bottom, which can be used for tripods of the same standard; the maximum load-bearing capacity is about 10kg;

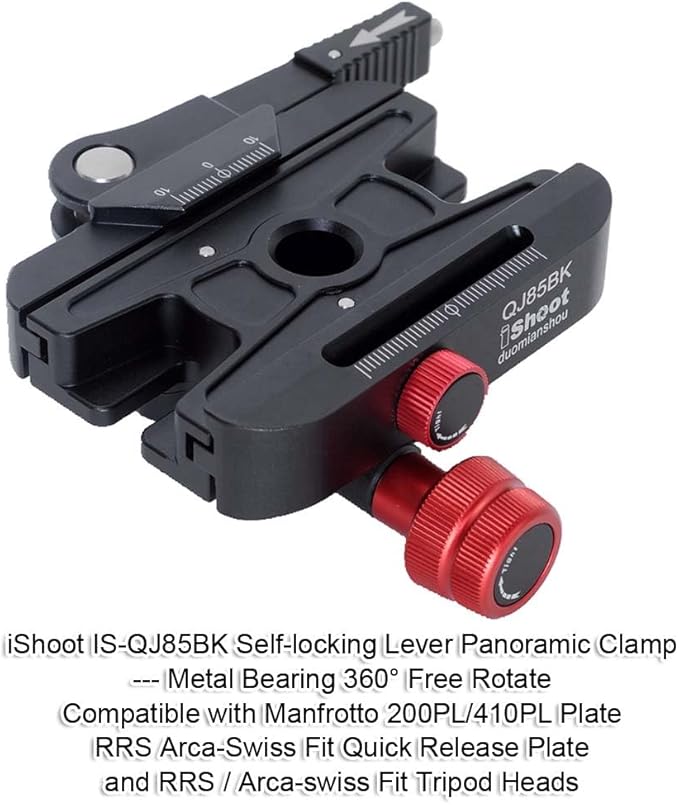

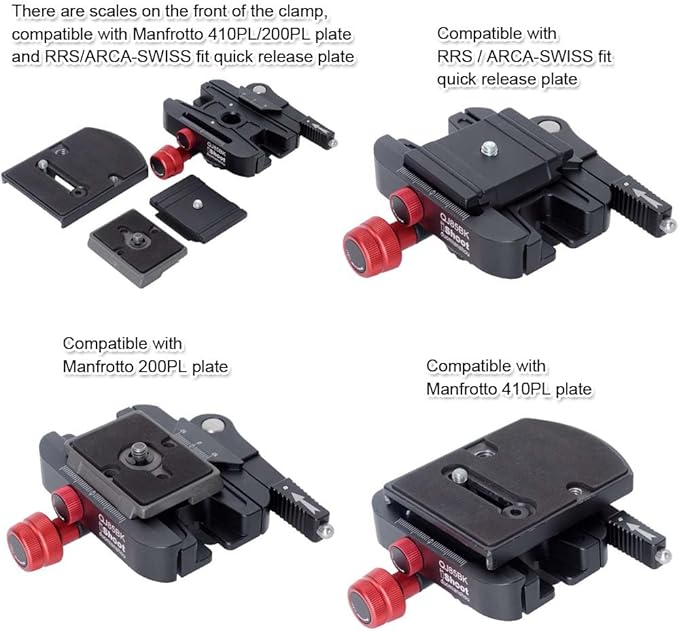

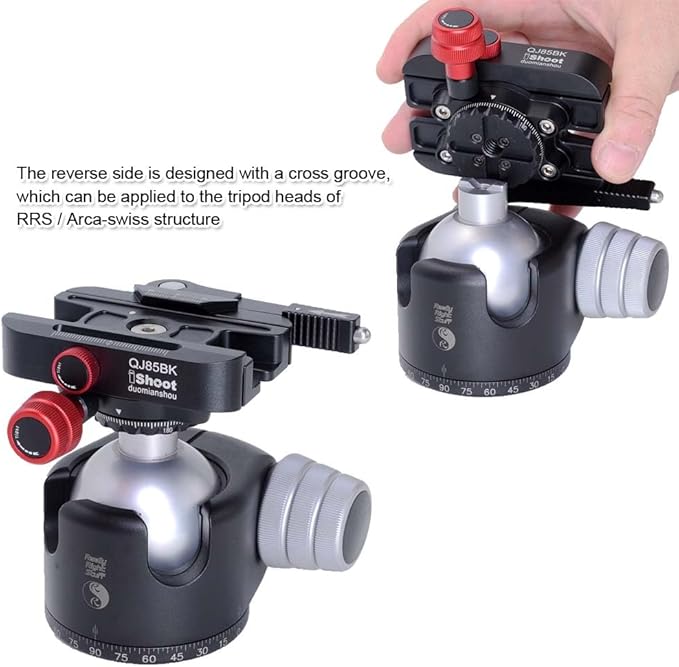

• 4. There are scales on the front of the clamp, compatible with Manfrotto 410PL/200PL plate and RRS/ARCA-SWISS fit quick release plate, the reverse side is designed with a cross groove, which can be applied to the tripod heads of RRS/Arca-swiss structure;

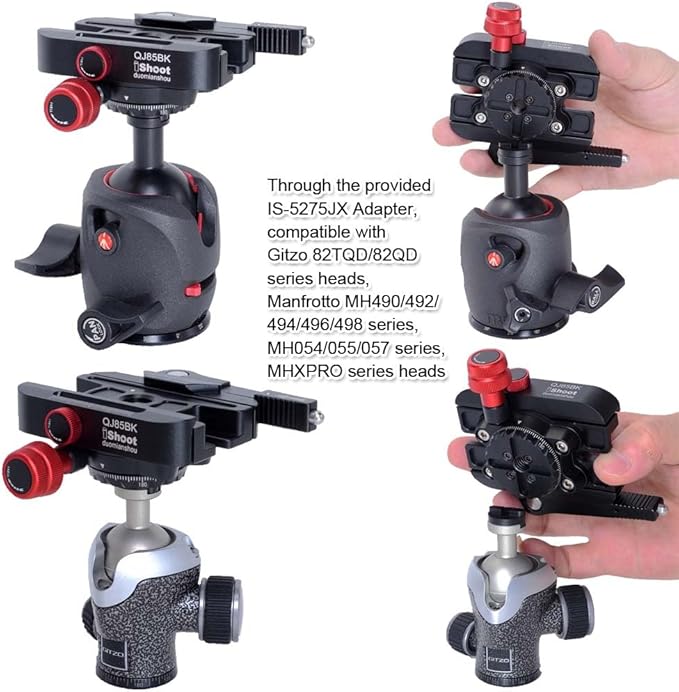

• 5. Through the provided IS-5275JX Adapter, compatible with Gitzo 82TQD/82QD series heads, Manfrotto MH490/492/494/496/498 series, MH054/055/057 series, MHXPRO series heads.

Overview

• Color : Black
• Brand : iShoot
• Compatible Devices : Camera
• Product Dimensions : 1.3"D x 4.13"W x 1.3"H
• Item Weight : 300 Grams
• Folded Size : 105mm x 105mm x 33mm
• UPC : 717967924545
